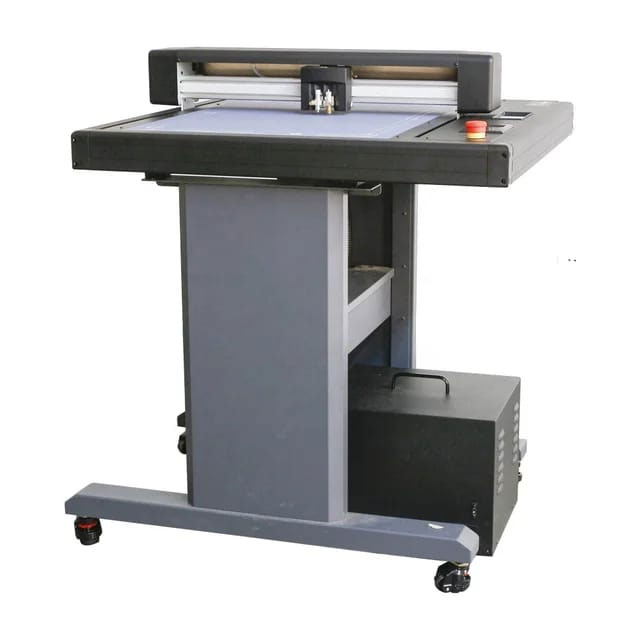

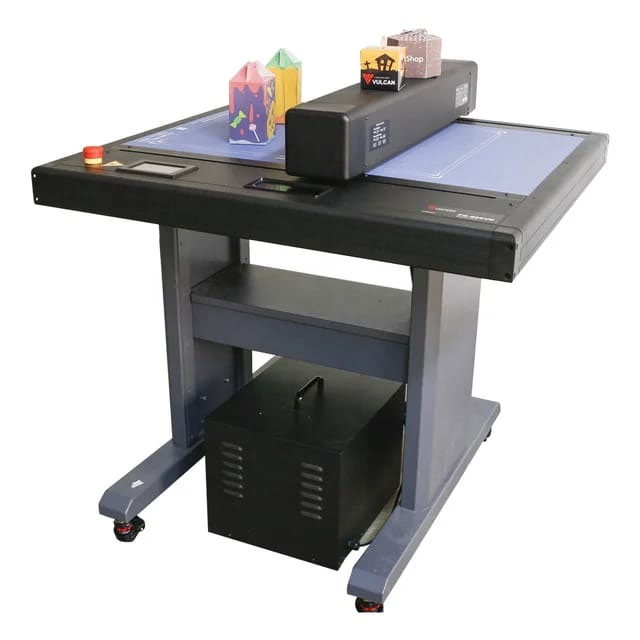

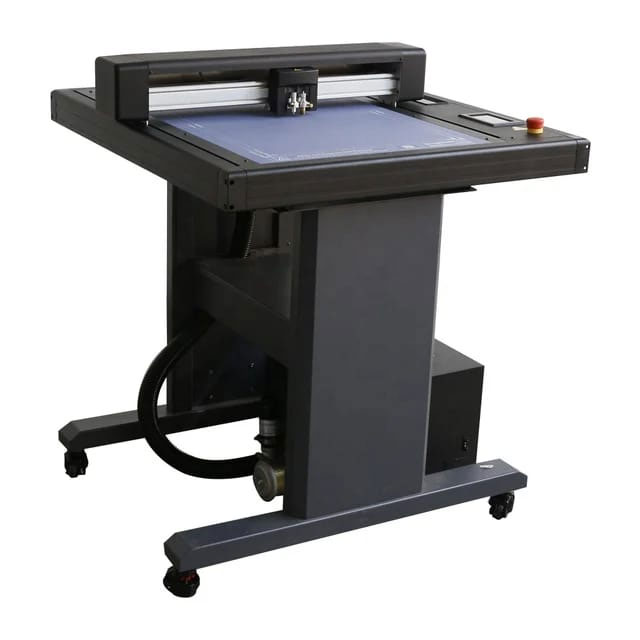

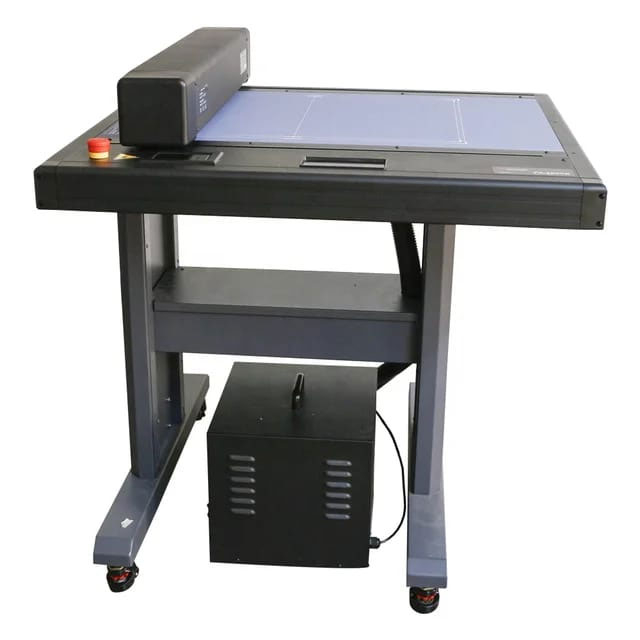

Vulcan 500 Digital Die Cutting Flatbed

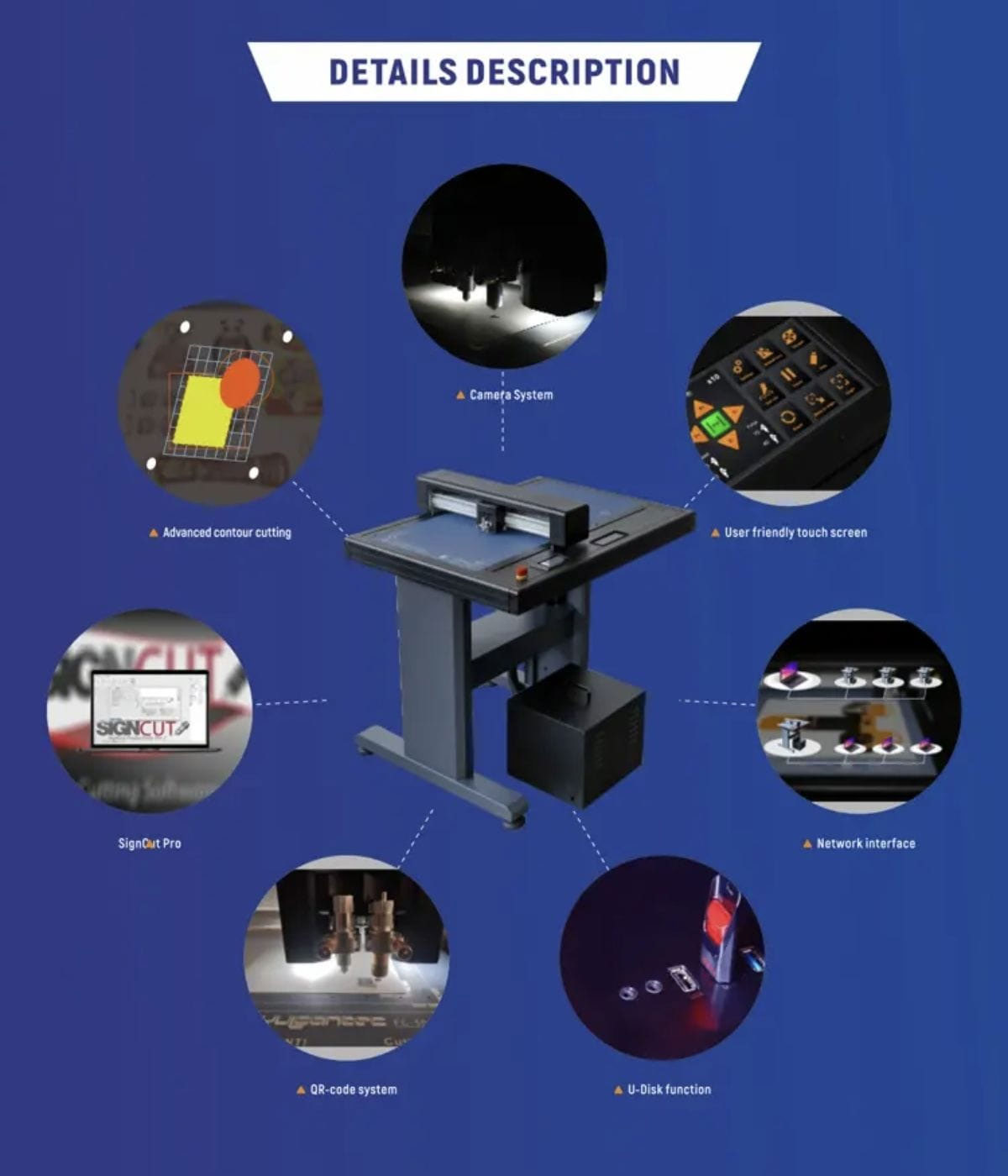

Main Feature

• Camera system
• USB flash disk
• Qrcode
• Precision
• Touch screen
• Network interface
• New feature for
• contour cutting
• Windows & Mac

Specifications

• Item:FC-500VC
• Configuration:Digital servo system, Flatbed
• Media hold-down method:Vaccum suction
• Maximum cutting speed:700 mm/s (10 to 700 mm/s )
• Cutting pressure:Tool 1: Max. 5.88 N (600 gf)
• :Tool 2: Max. 5.88 N (600 gf)
• Minimum character size:Approx. 5 mm square
• Mechanical resolution:0.005 mm (5µm)
• Programmable resolution:HP-GL: 0.025 mm
• Repeatability:Max 0.1mm
• Standard interfaces:USB2.0 (Full Speed) / U-Flash / Ethernet
• Memory:32MB
• Command sets:HP-GL

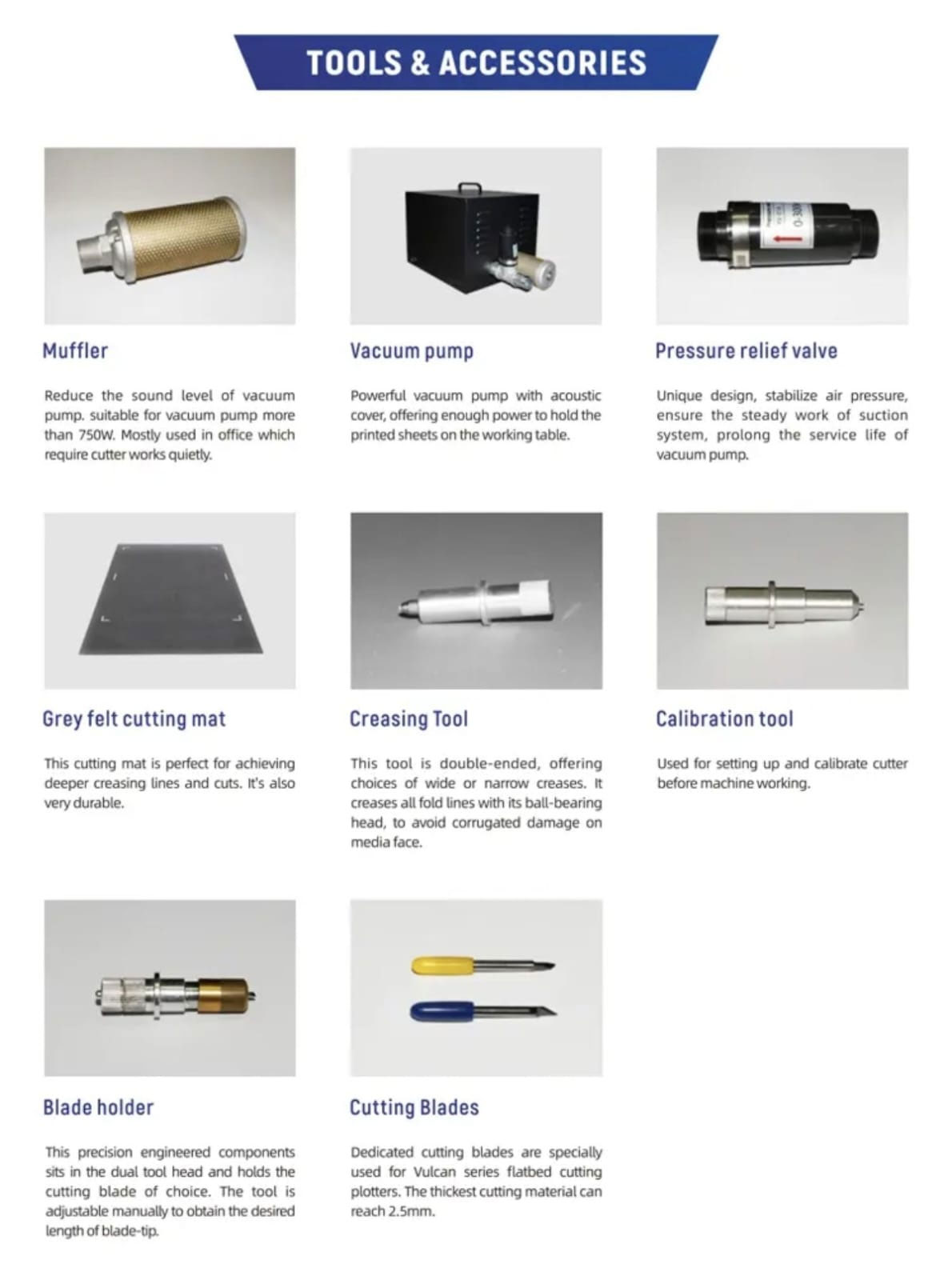

• Number of tools:2 tools
• Tool types:Cutter blade / Pen / Creasing
• Operating screen:4.3-inch touch LCD
