Toyocut A 13 Digital Die Cutting Sheetfed Machine

Features

• Camera SearchMark
• CDR and AIsend directly
• WIFIConnectivity
• Only 5 blank aroundmaterial
• Cutting Speed 900 mm/s
• CRD support both corel draw and illustrator

• 800 g super large knife pressure easyto cut a variety ofmaterials.
• Up to four interfacesemeet dierent needs ofcustomers

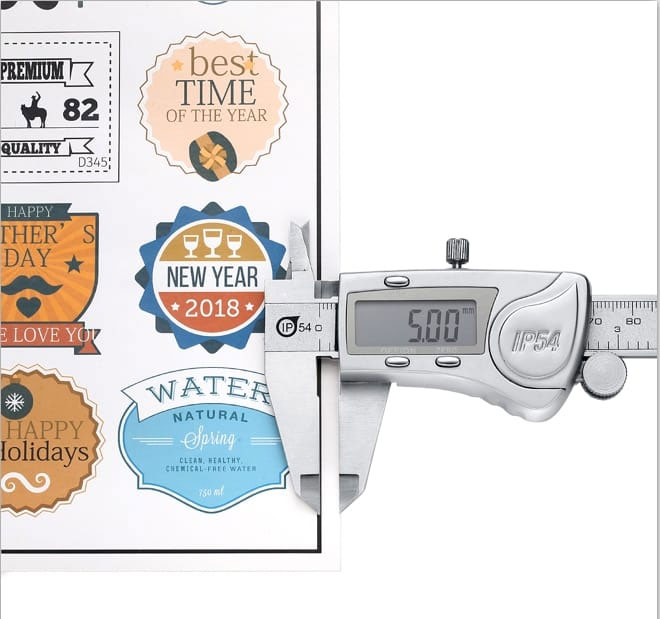

• Materials only needsto be retained 5mmblank on allsides
• Even if thematerial isinclined,cutter also cut accurately
• High precision camera identifymark on various
• badcgroundmaterials

Specification

• MODEL : A13 ADVANCE
• Interface : USB / PENDRIVE / WIFI / LAN
• Max media width : 335mm
• Max cutting width : 320mm
• MARK : 5mm round mark for camera
• Blank size : 5 mm blank arount the material
• Number of material : 100pages18mm thickness
• Mani board : High speed Arithmetic Microprocesor, 4 Mb cache
• Display : 2*16 high resolution LCD/1.7 inch LCD fro camera
• Driver : Digital DC, step motor, Micro-step Drive
• Control penal : Thin lm switch (life 1 million times)
• Drawing instruction : DMPL/HP-GL
• Max cutting speed : 900mm/s
• Max cutting thickness : 1mm
• Pressure : 50G~900g (160grads digital adjustable)
• Power supply : AC90~240V/50Hz~6Hz
• Mechanical precision : 0.025mm
• Repeatable precision : <+0.1mm
• Net weight/gross weight : 25kg/30kg
• Dimension/Package Dimension : 765*570*365mm/877*525*400mm
• CDR send directly : X4-X8, 2017-2022
• AI send directly : CS6-2022
• Gsm : 300
• Operating system : WINDOW OS
