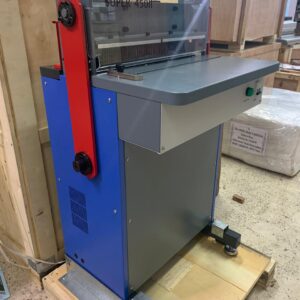

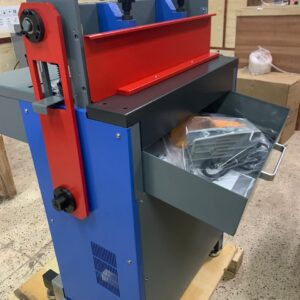

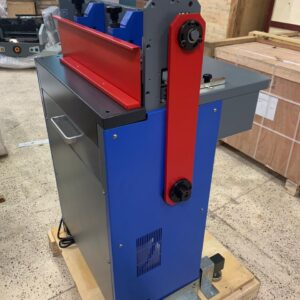

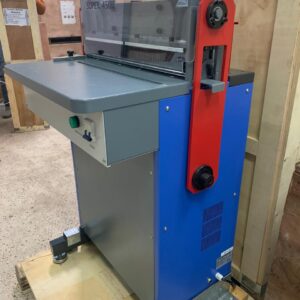

Super 450 Wiro & Spiral Machines

 Characteristics:

• SUPER450 Has advanced motor re ducer and special made mechanical clutch.
• Motor can run continuously and punching controlled by foot pedal which is easy and safe for operation.
• Interchangeable die is easy and fast, which can punch various holes.Closing double wire is also available by changing punching dies into closing die and can close any size of double wire.
• The working platform is large enough for you to work comfortably.
• Punching Width : 430 mm
• Punching Thickness :4 mm
• Punching Speed : 150 times/minute
• Punching margin is adjustable from 2.5mm to 6.5mm (not include the calendar dies)
• With wire closing system for both 3:1&2:1 on the back of the machine
• Can closer wire from 4.8mm to 38mm(3/16" to 11/2")
• Easy operation by foot pedal
• Exchangeable punching dies for all kinds of punching pattern
• Change dies is easy and fast, take 5 minutes.
• Motor Power : 220V/50Hz,110V/60Hz, 1500W
• Weight: 190Kg
