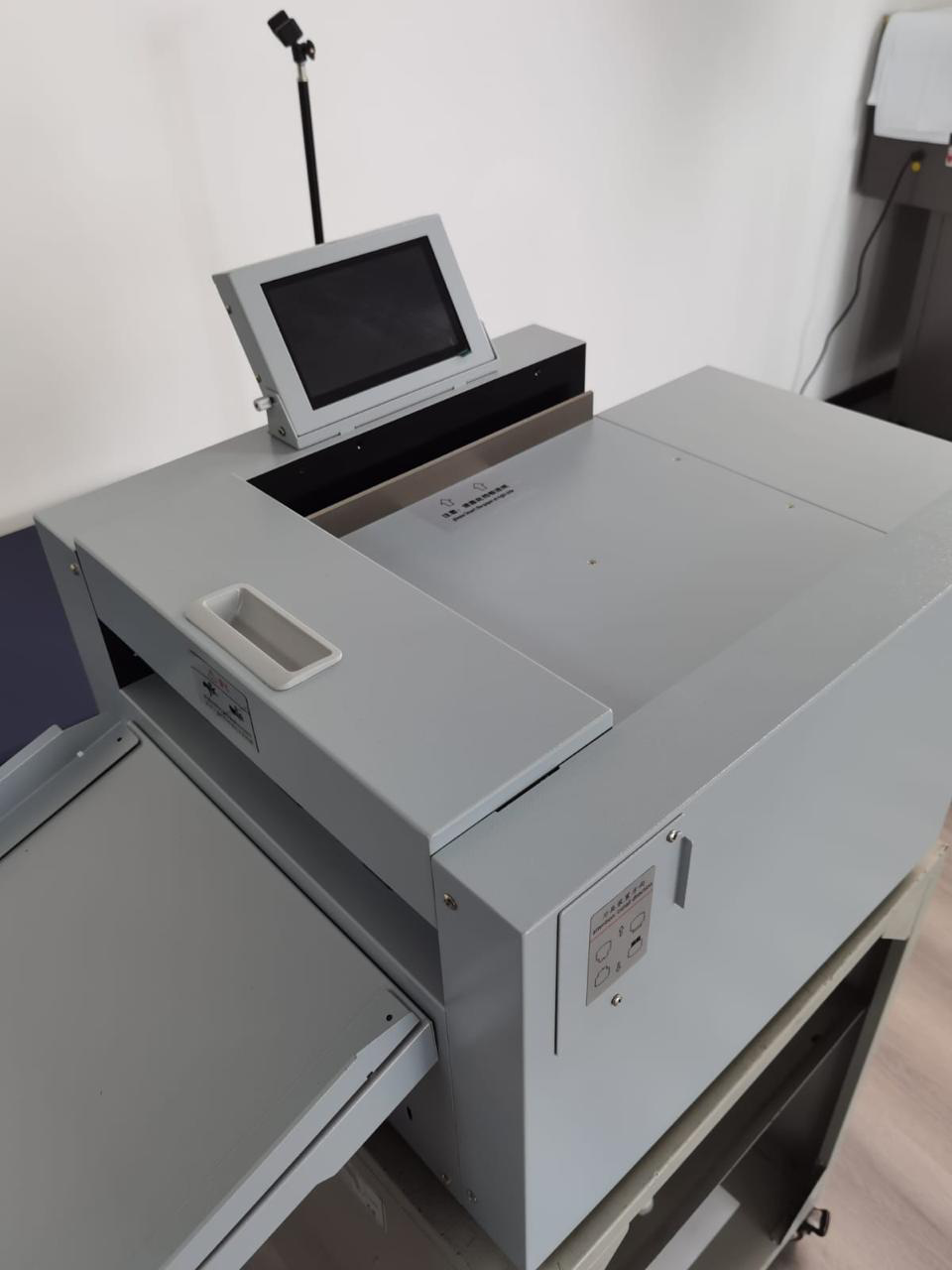

NC357 Digital Creasing Machines

Thank you for choosing our products.In order to ensure you can use this product in correct way, please read the manual carefully, pay attention to every details of the operation. it will help you on production and improve your skills. Our company has years of experience R&D team focusing on Precision mechanical design, electrical control, optical design etc. Benefit from advanced processing equipment and unique production process we make the qualified components and machines.

The AUTO CREASER NC357 is a product developed by us based on our technological superiority and production capacity. The processing position is digital control with creasing and perforting two functions in one. The workding width is 330mm, paper thickness 60-350g,max. Paper working length 1200mm. Max.36 creasing times on one paper. Hope this machine will makes your work perfect and help you a lot.

Environment

• Temperature: 10°C to 35°C
• Humidity: 30% to 70%
• Altitude: below 1000m

There is no corrosiveness gas, flammable gas, oil mist and so on in

Specification

• Paper size:50*90mm (Min.), 330*1200mm (Max.)
• Paper thickness:60-350g/㎡ (crease), 60-300g/㎡ (perforation)
• Paper type:Coated paper, Laminated paper, Varnish paper etc.
• Working precision:±0.2mm
• Working speed:4800pcs/hour (one crease on each A4 paper)
• Creasing times in each paper:0-36 times
• Voltage:220V/50Hz OR 110V/60Hz
• Power400W
• G.W52KGS
