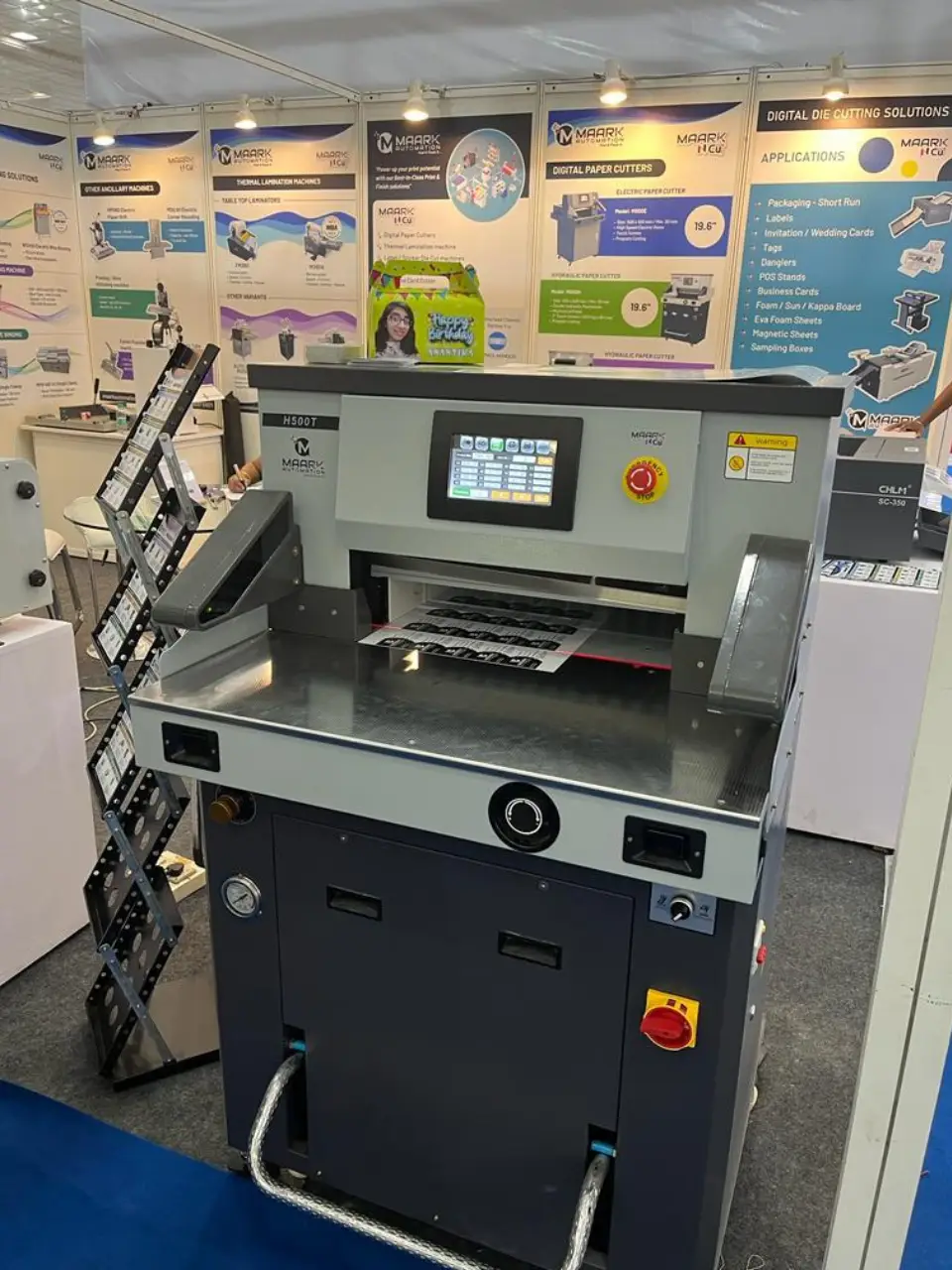

M500H Cutting Machines

Features

•  CE standard design, front and rear safety protection design, in line with product
  safety requirements
• Backguage platform can be folded, convenient for transportation
• Roller balls, 12mm steel plate with chrome plated for durability
• Dual Hydraulic power control
• Double guide rail push paper structure design device
• Intelligent control, LCD display, program optimization and upgrade, adjustable paper
  pressure; multiple self-checking functions, Fault code display function, counting
  function
• Cut position indication line: Infrared laser light

Specification

• Max. Cutting Size:500 mm
• Min. Cutting Size:30 mm
• Max. Cutting Thickness:80 mm
• Cutting Accuracy:± 0.2 mm
• Clamping Mode:Hydraulic +
• :Mechanic Pedal
• Program:100 x 96 cuts
• Display:7 Inch Touch screen
• Front Platform:12 mm Chrome plated
• Power Supply:220V ±10%, 50 Hz
• Power:750 W
• Net Weight:350 Kg (approx.)
