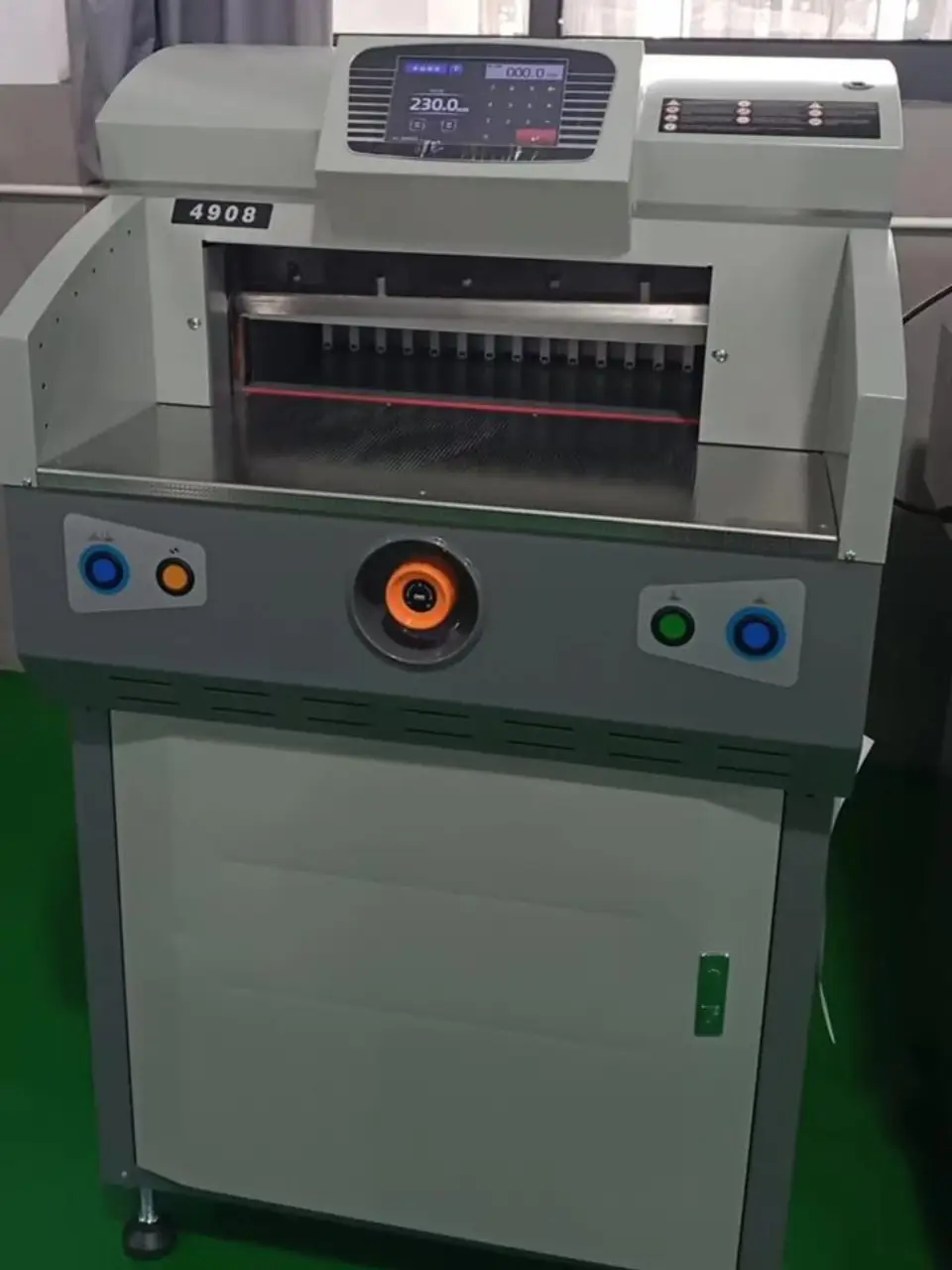

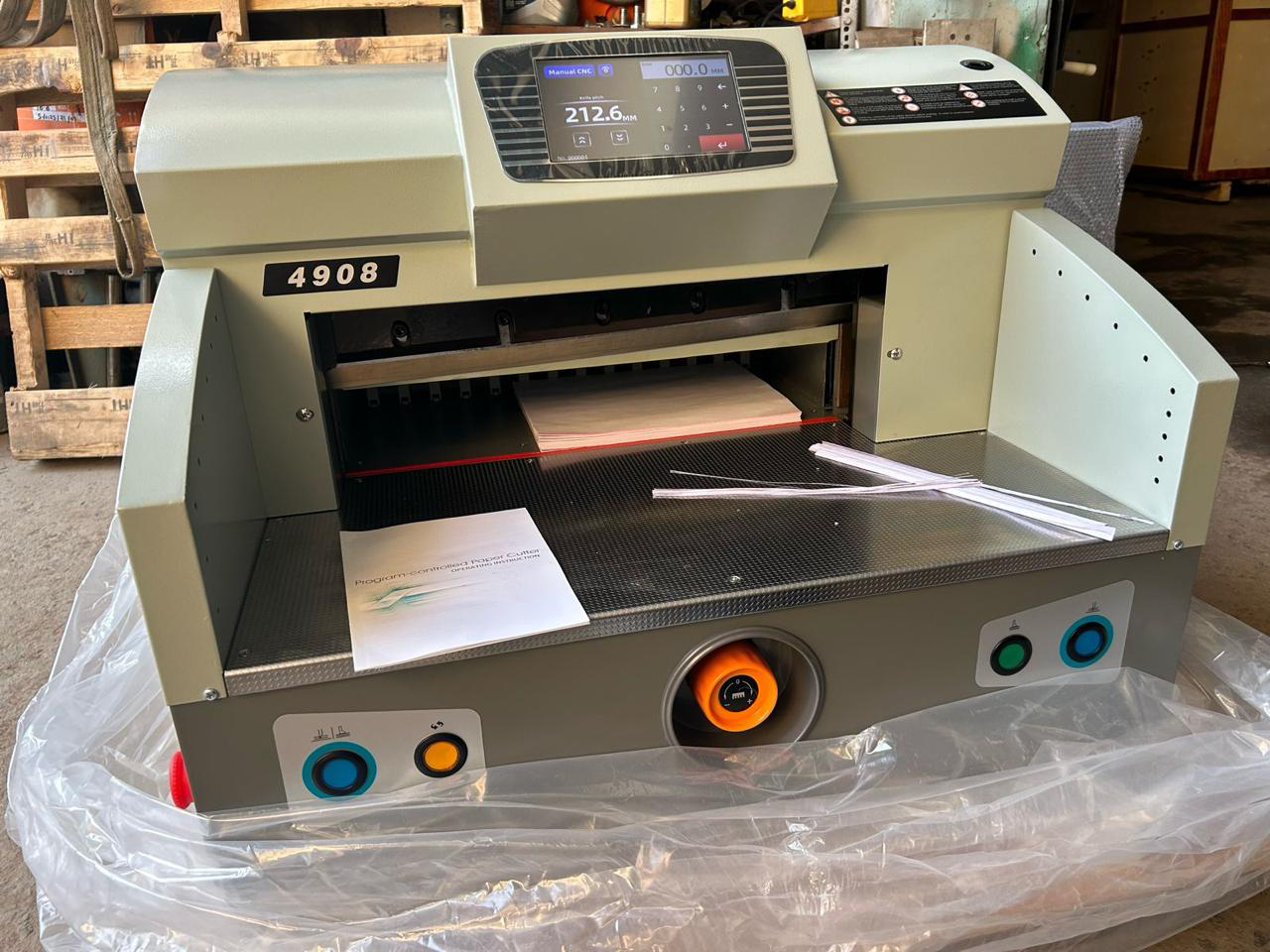

M4908E Paper Cutting Machines

Features

•  CE standard design, front and rear safety protection design, in line with product
  safety requirements
• Independent paper pressing and paper cutting structure design device
• Wide format pushing system, backguage without middle slot
• Safety devices, Light curtain, Two hand operation, emergency stop
• Touch screen includes diagnosis function, default setting, measure conversion
• Program and Manual cutting modes available
• Program 80 groups x 80 cuts, with Program save features
• Cut position indication line: Infrared laser light
• Ideal for all Digital Printers for Visting cards, Brochure, Books and many more

Specification

• Max. Cutting Size :490 mm
• Min. Cutting Size:25 mm
• Max. Cutting Thickness:80 mm
• Cutting Accuracy:± 0.3 mm
• Clamping Mode:Electric
• Push Motor:Stepper
• Display:7 Inch Touch
• :screen
• Program:80 x 80
• Power Supply:220V ±10%, 50 Hz
• Net Weight:200 Kg
• Machine Dimension:990x790x1200 mm
• Power:750 W
