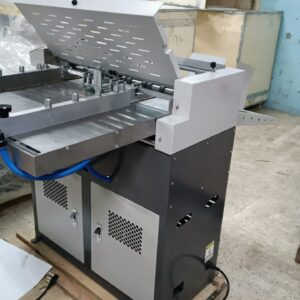

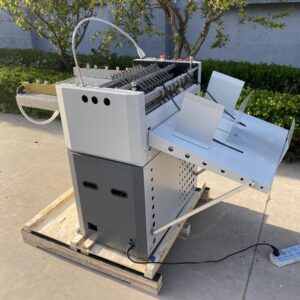

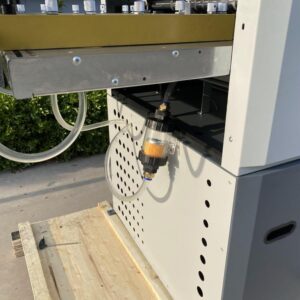

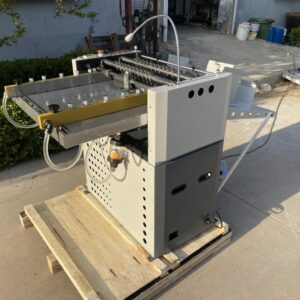

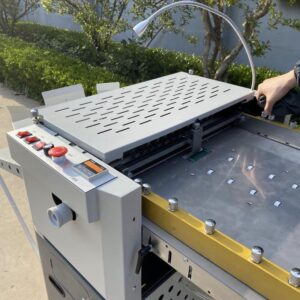

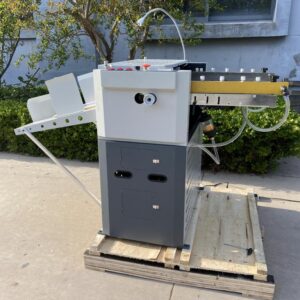

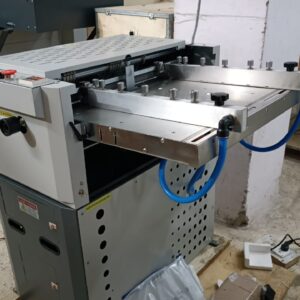

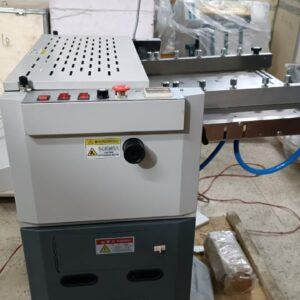

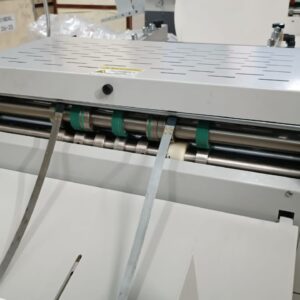

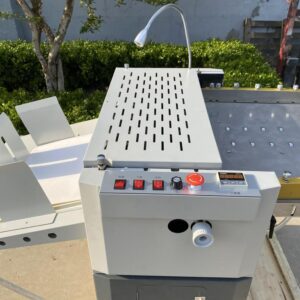

JH660+ Digital Creasing Machines

Product Description:

Automatic Paper Creasing Perforating Sticker Cutting Machine/Automatic auto creasing machine can finish creasing,perforating and adhesive stickerhaalf cutting .It is a best choice for printing plant, photocopy centers.

Main Features:
  •  This is multi-purpose machine, set adhesive sticker half cutting, creasing and
    perforating.
  • Simple Operation, High efficiency, lowering manpower cost.
  • Flexible range of counter. This machine can pre-set count auto-shop and
    delay on start.
  • Continuous bottom vacuum feeding.

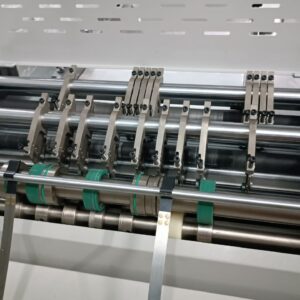

  • Adopts wheel type creasing, not break the fibre of paper, eliminate the crack
    of crease and ensure the good appearance of product.

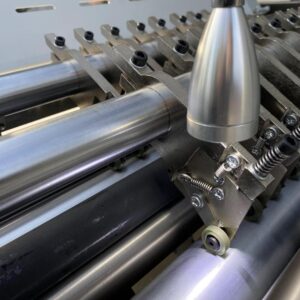

  • The machine has scratch resistance and abrasion resistance cutting steel
    roller. The machine hardness roller is hardened by quenching.
  • Automatic computing for the size of books line, high efficiency.
  • The distance between marks and the depth of mark is adjustable.
Specification
  • Max Paper Size:620x470
  • Min Paper Size:90x120
  • Sticker Knife:Straight Knife
  • Paper Weight:50-350g
  • Half Cutting Gap:2 mm
  • Min. Half Cutting Gap:7 mm
  • Speed:130m/min
  • Paper Feeding Way:Air Suction Type
  • Power:220V / 50Hz / 1050W
  • Weight:160 kgs
  • Dimensions:1400x870x1100 mm
  • Standard Configuration:20 Straight Knives,3 Creasing Moulds,
