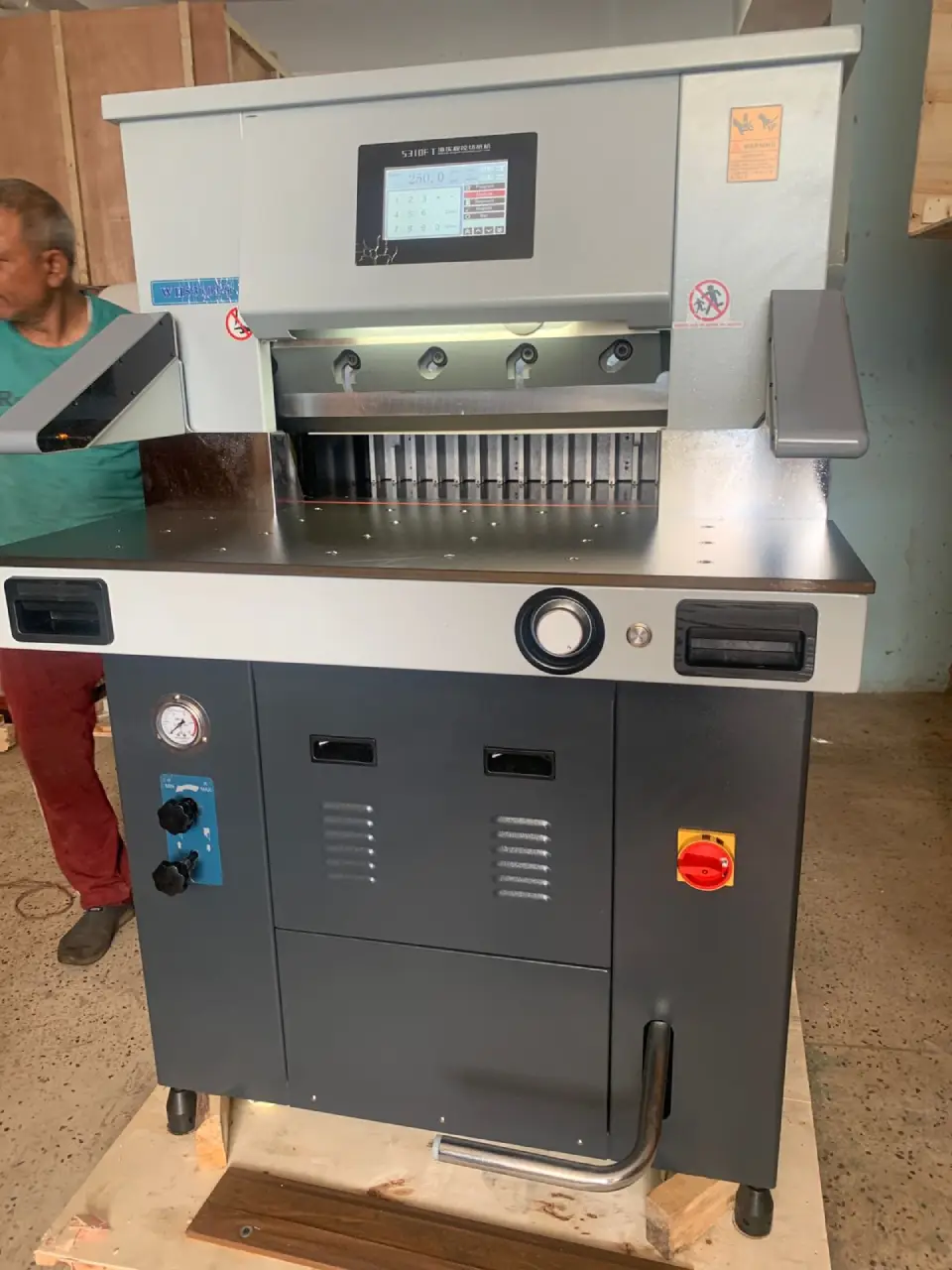

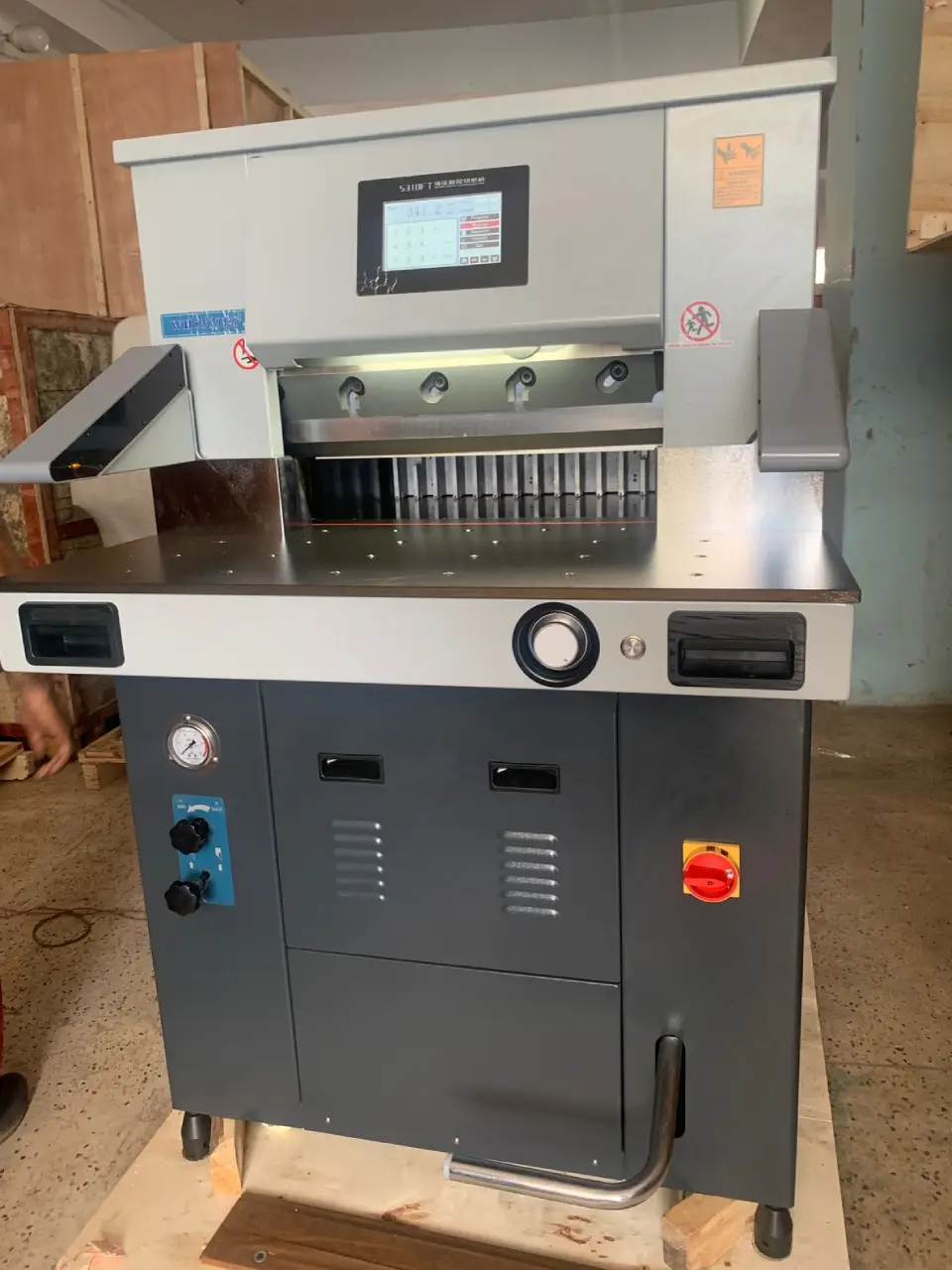

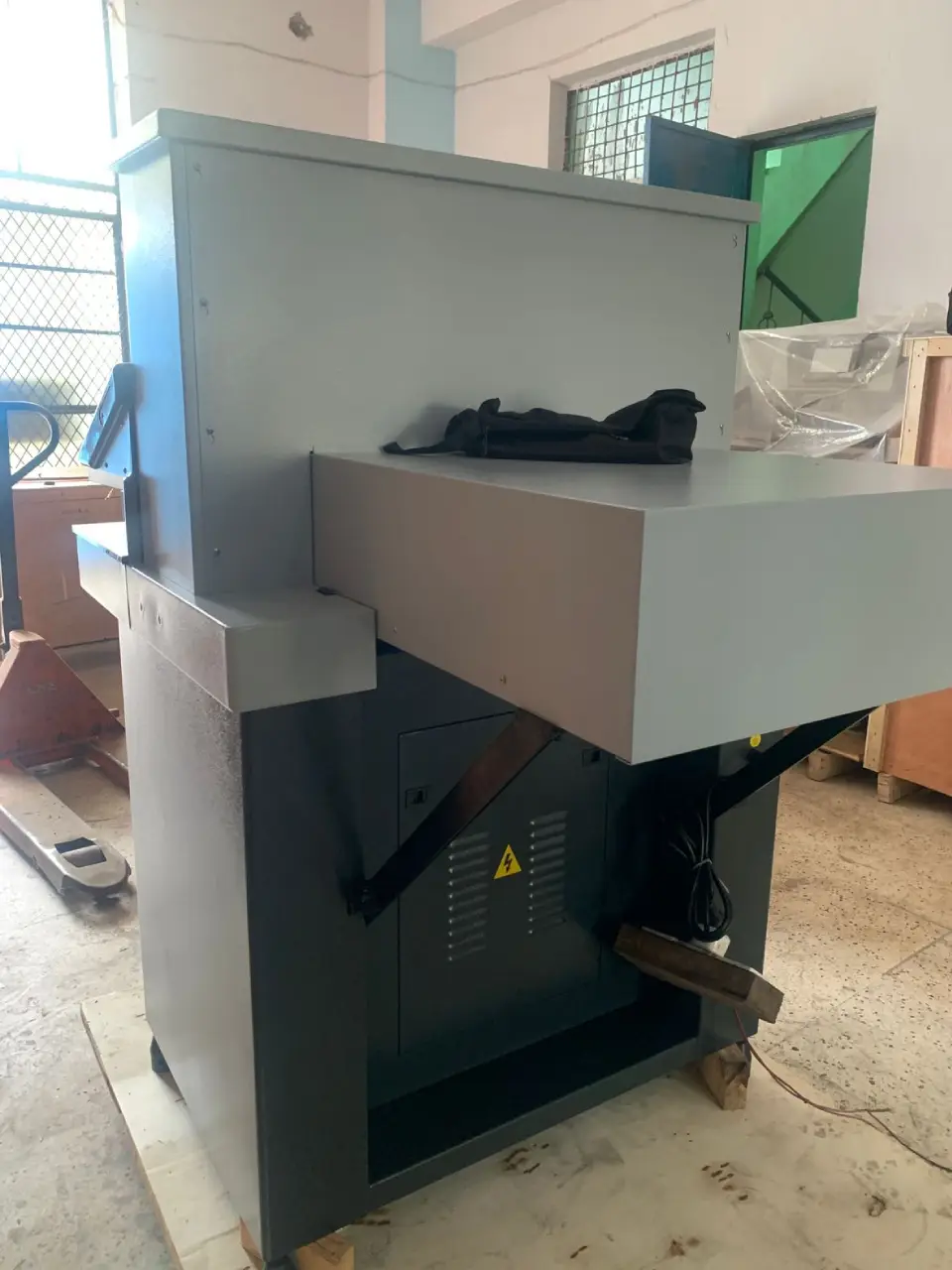

JH 530 Paper Cutting Machines
Features
- Good Quality touch screen
- Infrared grating safe
- Mechanical foot Pedal
- Front and back plate with air ball
- Double guide device: the paper pusher adopts imported double linear guide and roller ball screw , which can prolong the machine use life , and can bear the high speed paper delivering
- Whole heavy chasis make machine durable
- Heavy duty design with thick steel plate.
- Heavy duty casting body
- Mechanical hydraulic system
- Heavy duty knife holder
Specification
- Max Cut Size : 530mm
- Min Cut Size : 45mm
- Max Cut Height : 80mm
- Cutting Precision : ±0.3mm
- Mode of Clamp : Hydraulic Mechanical
- Mode of Cutting : Hydraulic
- Mode of Pushing : Motor pushing
- Program : Program control(100*7 programs)
- Display : 7 inches
- Power : AC 220V ±10% , 50Hz
- Gross Weight :550 Kg
