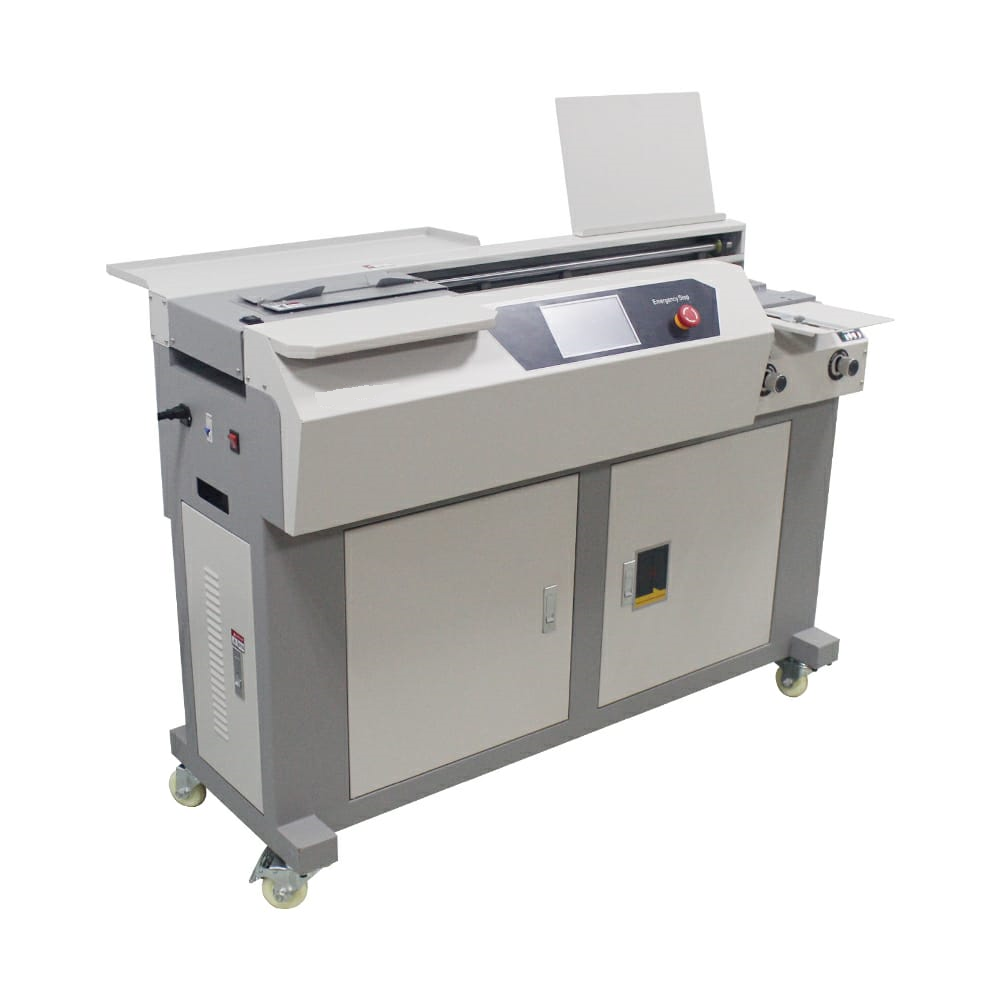

Bm300L Glue Binding Machine

Suitable for various A4, A3 short side soft book covers glue binding, binding thickness from 0.1mm to 60mm.

1. Upgraded Configuration, New Experience

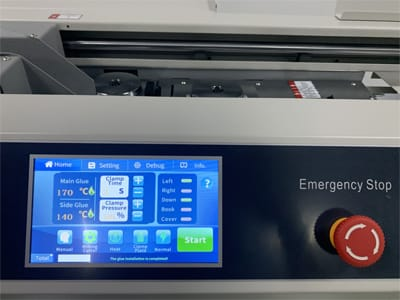

7 inch Intelligent Touch Screen, More Intelligent;

Dual Mode operation, one key switch, fast mode 8s/book;

Digital Display of Book Spine Angle Adjustment.

2. Independent Side Glue Tank design

Single Roller + Side Roller;

Aluminium Glue Tank heated evenly;

3. Human Centered Design and Environmentally friendly

No Pungent odor, environmentally friendly, no smoke;

Double fan blades pipeline dust collection system to ensure less paper scraps and improve the performance of glue binding;

High air flow, low power consumption, long lifetime.

4. High Precise Configuration

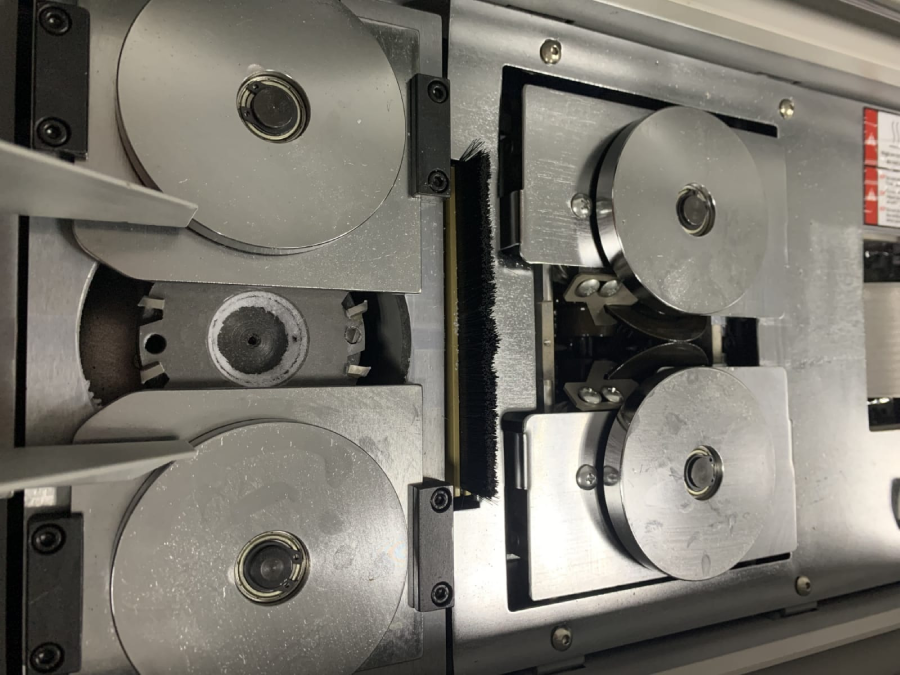

10 teeth Alloy Milling Cutter+ 2 small milling cutter for durability performance;

7 levels adjustment of glue control the glue thickness of the book precisely;

New full scale tooth clamping structure torque motor control, the clamping surface is not easy to jam, ensure the forming stable.

Specification

• MODEL::BM300L
• Max. Binding Length:320 mm
• Max. Binding Thickness:60 mm
• Glue Melt Time:about 20 mins
• Binding speed:320 book/hour
• Milling Cutter:Small Milling Cutter+Sun Milling Cutter
• Glue Roller:Spine Glue Roller+Side Glue Roller
• Glue Type:Manual&Automatic+fast mode
• Display Mode:7 inch touch screen
• Spine forming adjustment method:Knob with digital dispay
• Power Supply:220V
• Power:1200w
• Paper Milling:two-fold
• Machine size:1280*500*980mm
• Gross weight:190kg
