520Y Thermal lamination machine

Features:

1.Intelligent temperature control, infrared heating, built in three heating tubes.

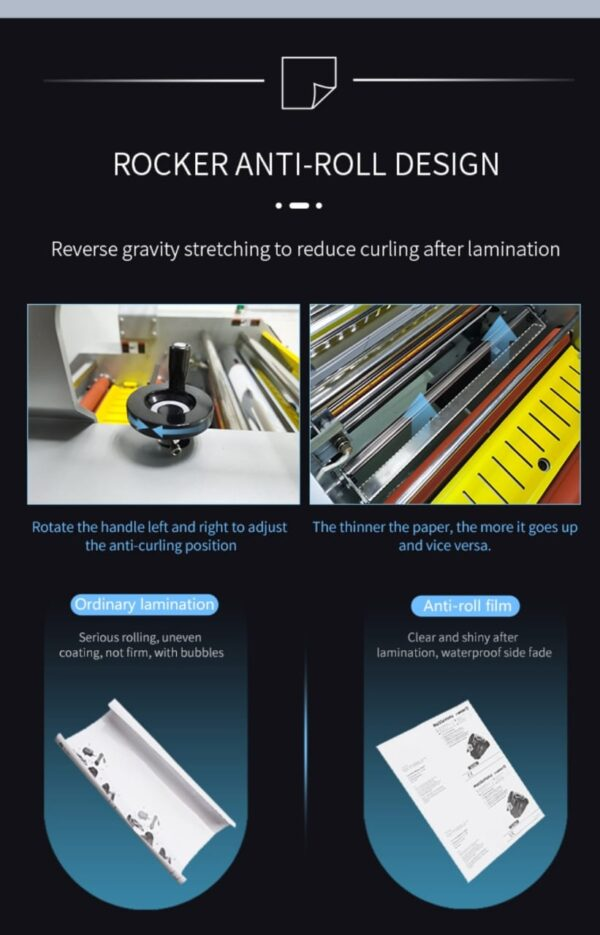

2.Electric adjustment of single-sides anti curling function.

3.Frequency conversion speed regulation, 400W gear box deceleration motor.

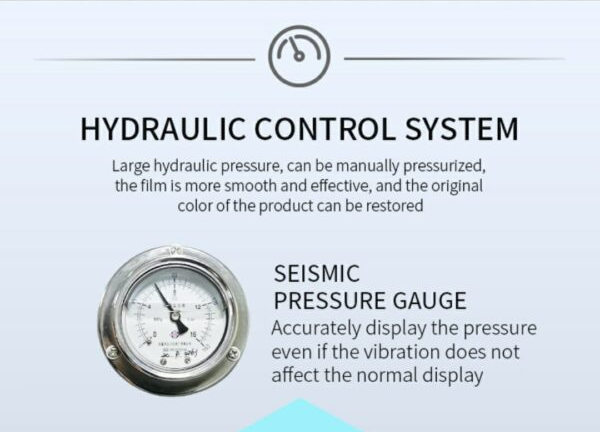

4.Manual pump hydraulic control system, shock proof pressure display table.

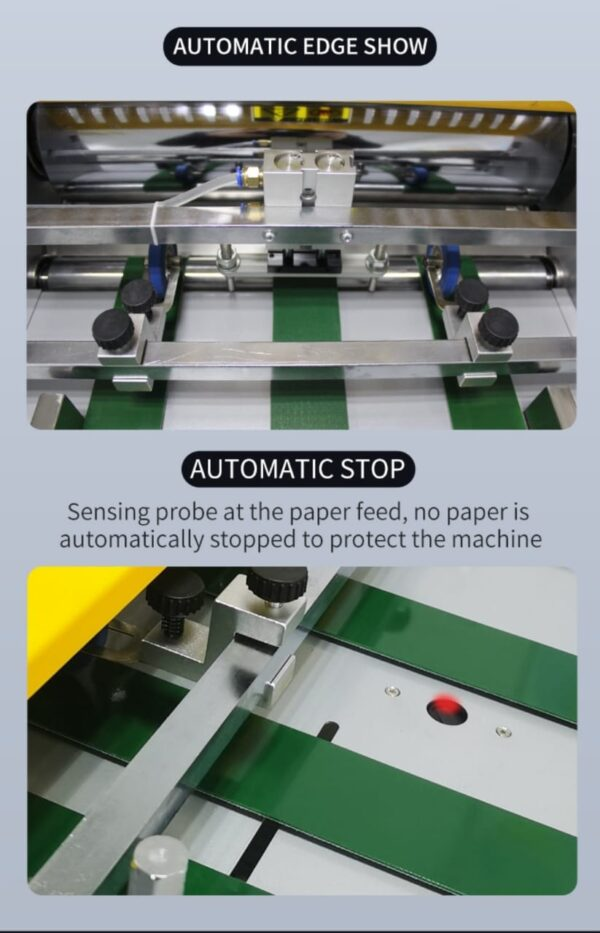

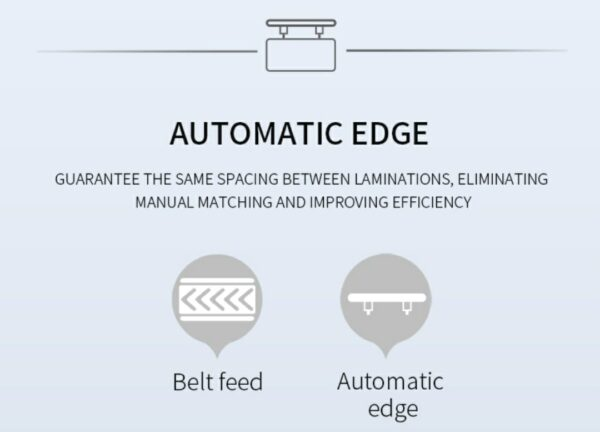

5.The synchronous conveyor belt, automatically feeds the paper, and the finishing product is automatically wound.

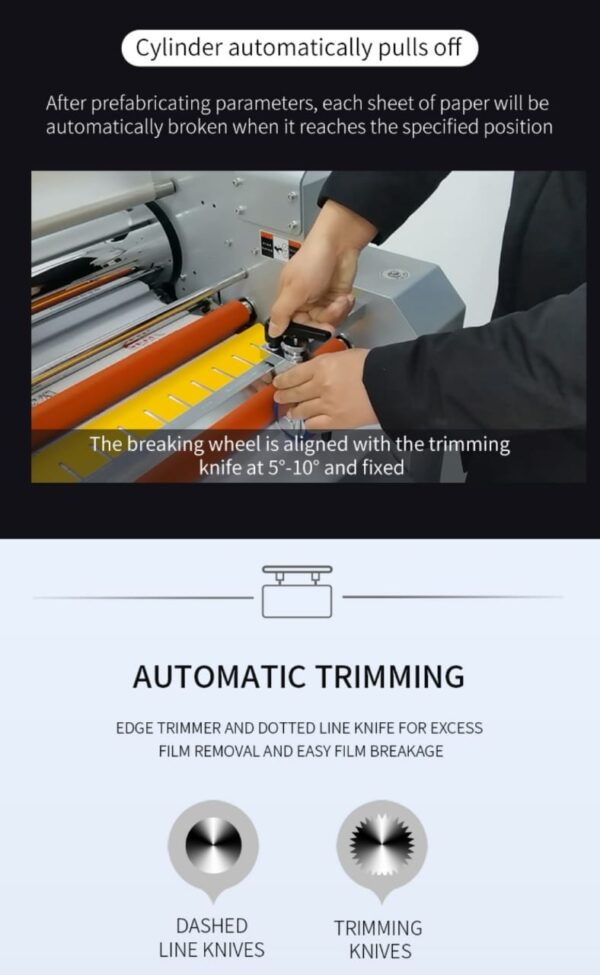

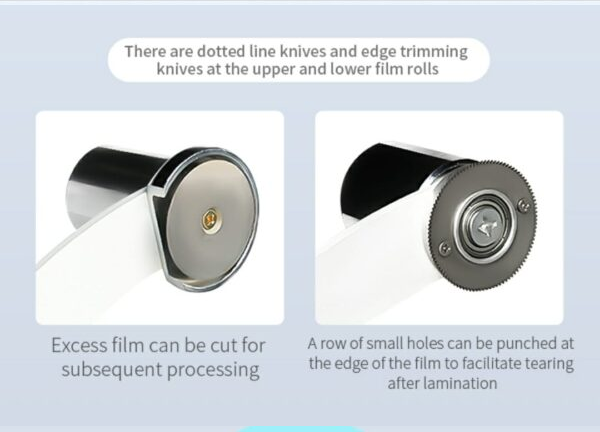

6.Equipped with trimming cutter and dotted tooth cutter.

7.Equipped with jog-type foot switch, switch is convenient for film channeling.

8.The diameter of the steel roller is 200 mm, and the diameter of the lower rubber roller is 150 mm.

9.The material of the rubber roller adopts imported non stick high temperature resistant silicone rubber.
