"Power up your Print Capabilities with our Best-In-class Print & Finish solutions"

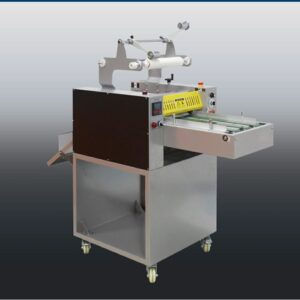

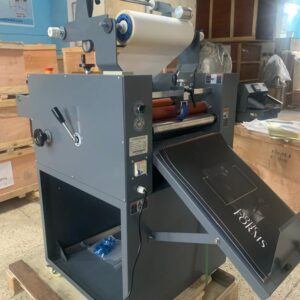

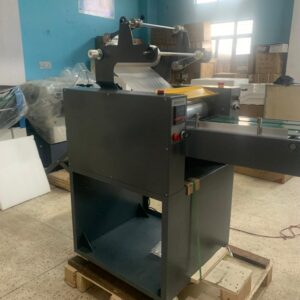

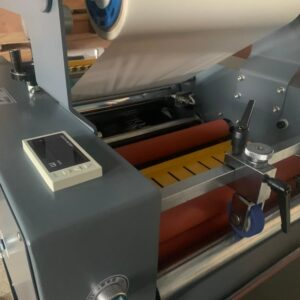

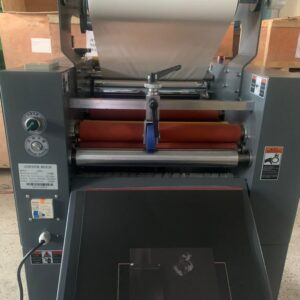

35EP Thermal lamination machine

Features:
  • Synchronous conveyor belt automatically feeds paper, intelligent automatic breaking system, no need for air compressor.
  • Intelligent temperature control, infrared heating.
  • Single side anti-curling function.
  • 80W gearbox motor.
  • Thicken the mold spring and bias the wheel pressing system
  • Equipped with trimming cutter and dotted cutter
  • The diameter of the steel roller is 110mm, and the diameter of the lower rubber roller is 75mm.
  • The lower rubber lower is made of non sticky and high temperature resistant silicone.
Specifications:
  • Max. Laminating Width:350 mm
  • Max. Laminating Thickness:2 mm
  • Laminating speed:0~6m/min
  • Lamination:Single side
  • Hot Laminating Temperature:160 degree celsius
  • Display:LCD
  • Steel Roller Diameter:100 mm
  • Rubber Roller Diameter:75 mm
  • Heating Method:Infrared Internal Hot Air
  • Auto Curling function:YES
  • Auto pull off function:YES
  • Heating Power:1600 W
  • Motor Power:80W
  • Power Supply:AC 220V, 50Hz
